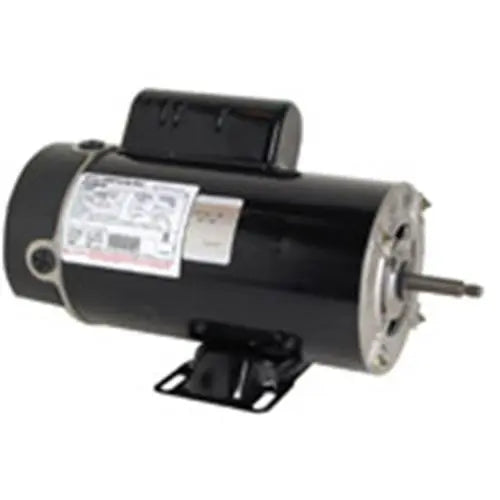

AO Smith 4HP 230V 2 Speed Thru Bolt Pump Motor - BN63

Sold out
Original price
$379.99
Current price

$316.00

SKU BN63

Product Description

AO Smith 4 Horsepower 230V 2 Speed Thru Bolt Pump Motor is a Century Flex 48 LASAR-XL two-speed pump motor for spas, jetted tubs and aboveground pools. This replacement pool pump motor features extra low running amps and a rigid base. AO Smith is a leading supplier of electrical motors for residential, commercial and industrial applications.



Features:

  • Energy efficient
  • 12 & 3 o'clock conduit entries
  • Run capacitor mounted on motor shell

Specifications:

  • Ambient Temperature :  50 deg C
  • Bearing Type :  Ball
  • Diameter :  5-5/8 Inch
  • Duty Cycle :  Continuous
  • Efficiency Group :  Standard
  • Enclosure Design :  Open Drip proof
  • Flange Material :  Aluminum
  • Frame :  48Y
  • Frequency Rating :  60 Hz
  • Full Load Amps :  12.0/3.5 A
  • HP :  4/0.42 SPL
  • Insulation Class :  B
  • Motor Design :  PSC
  • Motor Shaft Rotation :  CCWPE
  • Motor Thermal Protection :  Auto
  • Mounting Type :  Thru-Bolt, Rigid Base
  • Number of Speed    :  2-2-VT
  • Overall Length :  14.33 Inch
  • Phase :  1-Phase
  • RPM :  3450/1725
  • Service Factor :  1.00
  • Shaft Design :  Threaded
  • Shaft Diameter :  1/2 Inch
  • Shaft Length :  2-5/16 Inch
  • Standards Approvals :  UL Approved, UL Recognized (E44549), CSA Certified (LR4642), Meets California Energy Commission Appliance Regulations 2008
  • Thrust Horsepower :  4
  • Voltage Rating :  208-230 V
