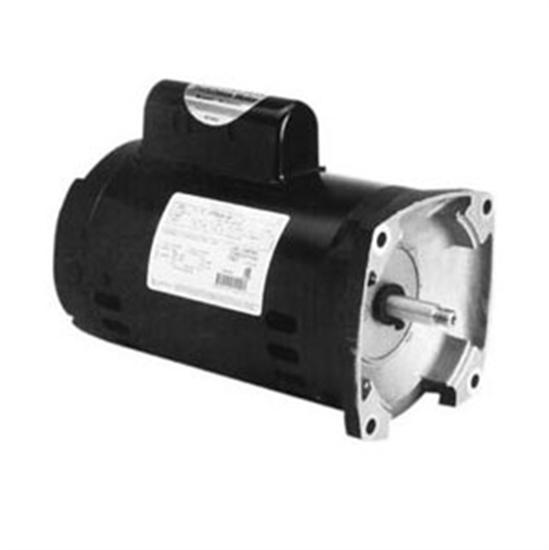

AO Smith 3 HP 3 Phase Square Flange Replacement Motor 230-460V - Q3302

Save 16%
Original price
Current price


SKU Q3302

Product Description

AO Smith 3 HP 3 Phase Square Flange Replacement Motor 230/460V. AO Smith Motors are the OEM (Original Equipment Manufacture) for most popular pool pumps. If you look on your current pool pump label it will most likely say the brand name of the pump (i.e. "Hayward) and somewhere on there it will say "AO Smith".  AO Smith makes the motors and sells them to Hayward and most other popular brands.  They just put their sticker on it.

Important: Total output (HP x service factor ) of replacement motor must equal or exceed motor being replaced.

A.O. Smith was recently acquired by Century Electric Motors.  You can expect the same great quality motors from Century Electric.  Motors are now labeled as Century Electric formerly A.O. Smith.


  • Pools


  • HP: 3
  • RPM: 3450
  • Volts:  200-230/460
  • Frame: 56Y
  • Service Factor: 1.15
  • Max Amps: 9.7 / 4.9
  • Stainless Steel Threaded Shaft
  • Sealed Ball Bearings
  • 60Hz
  • 50 Degrees C Ambient
  • Open Drip Proof
  • All Copper Windings
  • Overload Protector: None
  • Approx. "AG": 12
  • Three Phase Square Flange
  • No Base
