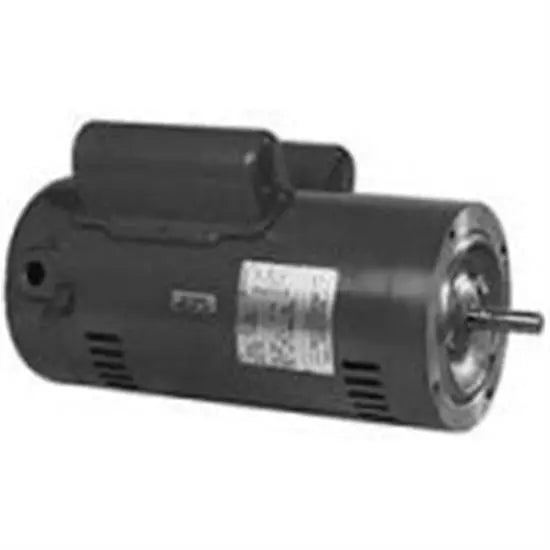

AO Smith 3 HP 208-230V 56C Replacement Motor - SK1302V1

Sold out
Original price
$449.99
Current price

$398.00

SKU SK1302V1

Product Description

AO Smith 3 Horsepower 208-230V 56C Replacement Motor - SK1302V1 features all copper windings, an auto protector, capacitor start, NEMA "56C" face mount, sealed ball bearings, a sealed switch design, 60 HZ, and a 303 stainless shaft (56J & 56C). This replacement motor is open drip proof, has a "1081" design, rotation (CCWPE), 50 degree C ambient, and a  304 Brg. shaft end. This AO Smith motor is not reversible. It is important to keep in mind that the total output (HP x service factor) of a replacement motor must equal or exceed the motor being replaced.

Features:

  • Sealed switch design
  • High service factor
  • Energy efficient "Conservationist™" motor

Specifications:

  • Ambient Temperature: 50 deg C
  • Bearing Type: Sealed Ball
  • Diameter: 6-1/2 Inch
  • Duty Cycle: Continuous
  • Enclosure Design: Open Drip proof
  • Frame: 56C
  • Frequency Rating: 60 Hz
  • Full Load Amps: 14.4 A
  • HP: 3
  • Insulation Class: B
  • Motor Design: Capacitor Start/Run
  • Motor Shaft Rotation: CCWPE
  • Motor Thermal Protection: Auto
  • Mounting Type: C-Face
  • Number of Speed: 1-Speed
  • Overall Length: 13.63 Inch
  • Phase: 1-Phase
  • RPM: 3450
  • Service Factor: 1.15
  • Shaft Design: Keyed
  • Shaft Diameter: 5/8 Inch
  • Shaft Length: 2-1/16 Inch
  • Standards Approvals: UL 1081 Approved, UL Recognized (E14663), CSA Certified (LR4642)
  • Thrust Horsepower: 3.45
  • Voltage Rating: 208-230 V
