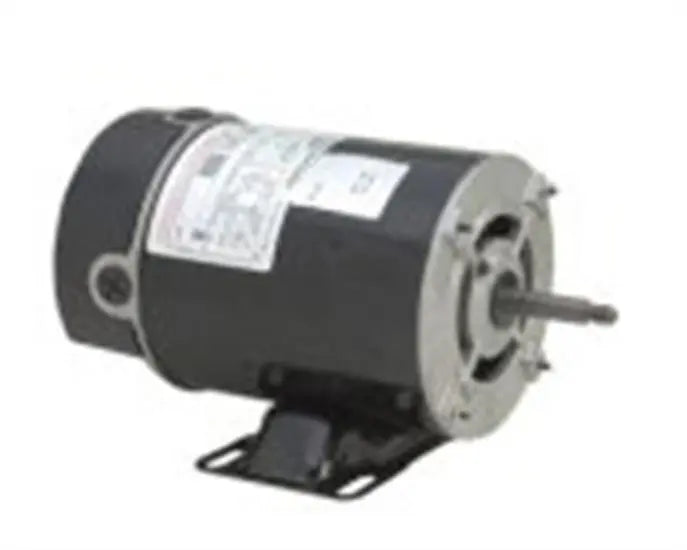

AO Smith 3/4 HP Replacement 2 Speed Hot Tub Motor 120V Thru Bolt - BN36

Save 20%
Original price
$199.99
Current price

$159.00

SKU BN36

Product Description

AO Smith 3/4 Horsepower Replacement 2 Speed Hot Tub Motor 120V Thru Bolt can be used with most leading brands of tub, spa, and above-ground pool pumps with threaded-shaft drives. 12 and 3 o'clock conduit entries provide wiring flexibility.



Features:

  • 12 & 3 o'clock conduit entries
  • 48/56 Base mounting
  • 3/8-16 UNC-2A RH threaded shaft

Specifications:

  • Ambient Temperature :  40 deg C
  • Bearing Type :  Ball
  • Diameter :  5-5/8 Inch
  • Duty Cycle :  Continuous
  • Efficiency Group :  Standard
  • Enclosure Design :  Open Drip proof
  • Frame :  48Y
  • Frequency Rating :  60 Hz
  • Full Load Amps :  8.8/2.6 A
  • HP :  0.75/0.1
  • Insulation Class :  B
  • Motor Design :  Split-Phase
  • Motor Shaft Rotation :  CCWPE
  • Motor Thermal Protection :  Auto
  • Mounting Type :  Thru-Bolt, Rigid Base
  • Number of Speed    :  2-2-VT
  • Overall Length :  12.08 Inch
  • Phase :  1-Phase
  • RPM :  3450/1725
  • Service Factor :  1.00
  • Shaft Design :  Threaded
  • Shaft Diameter :  1/2 Inch
  • Shaft Height :  3-1/2 Inch
  • Shaft Length :  2-5/16 Inch
  • Standards Approvals :  UL 1081/1563 Approved, UL Recognized (E14663), CSA Certified (LR4642)
  • Thrust Horsepower :  1.5
  • Voltage Rating :  115 V
