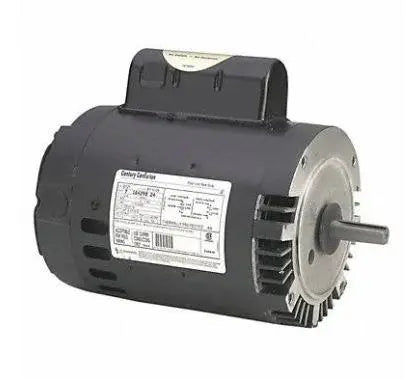

AO Smith 3/4 HP 2 Speed Replacment Motor - B972

SKU B972
Availability:
in stock, ready to be shipped
Save 19% Save 19%
Original price $369.99
Original price $369.99 - Original price $369.99
Original price $369.99
Current price $300.60
$300.60 - $300.60
Current price $300.60

Questions? Contact a Pool Professional Now!

Chat with us | Text us | Email us

Product Description

AO Smith 3/4 Horsepower 2 Speed Replacment Motor - B972 features a permanent split capacitor, switchless, single phase, drip proof, round frame, 3600 RPM. This replacement motor by AO Smith also includes ball bearings, 50 degree C ambient, 60 Hz, class B insulation, CW non-reversible and has an energy efficient design.

Features:

  • Switchless
  • Energy efficient

Specifications:

  • Ambient Temperature: 40 deg C
  • Bearing Type: Ball
  • Diameter: 6-1/2 Inch
  • Duty Cycle: Continuous
  • Efficiency Group: Standard
  • Enclosure Design: Open Drip proof
  • Flange Material: Aluminum
  • Frame: 56C
  • Frequency Rating: 60 Hz
  • Full Load Amps: 11.2/5.0 A
  • HP: 0.75
  • Insulation Class: B
  • Motor Design: Capacitor Start/Run on Low Speed, PSC on High Speed
  • Motor Shaft Rotation: CCWPE
  • Motor Thermal Protection: Auto
  • Mounting Type: C-Face, No Base
  • Number of Speed: 2-2-VT
  • Overall Length: 11.80 Inch
  • Phase: 1-Phase
  • RPM: 3450/1725
  • Service Factor: 1.50
  • Shaft Design: Keyed
  • Shaft Diameter: 5/8 Inch
  • Shaft Length: 2-1/16 Inch
  • Standards Approvals: UL 1081 Approved, CSA Certified, Meets California Energy Commission Appliance Regulations 2008
  • Thrust Horsepower: 1.13
  • Voltage Rating: 115 V
