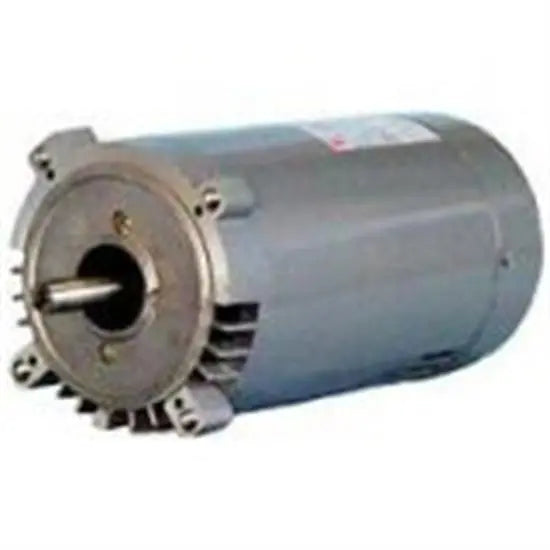

AO Smith 3/4 HP 115-230V 56C Replacement Motor - SK1072

Product Description

AO Smith 3/4 Horsepower 115/230V 56C Replacement Motor - SK1072 features all copper windings, an auto protector, capacitor start, NEMA "56C" face mount, sealed ball bearings, a sealed switch design, 60 HZ and a 303 stainless shaft (56J & 56C). This replacement motor is open drip proof, has a "1081" design, rotation (CCWPE), 50 degree C ambient and a 304 Brg. shaft end. This AO Smith motor is not reversible. It is important to keep in mind that the total output (HP x service factor) of a replacement motor must equal or exceed the motor being replaced.

Features:

• Sealed switch design
• High service factor

Specifications:

• Ambient Temperature: 50 deg C
• Bearing Type: Sealed Ball
• Diameter: 6-1/2 Inch
• Duty Cycle: Continuous
• Efficiency Group: Standard
• Enclosure Design: Open Drip proof
• Flange Material: Aluminum
• Frame: 56C
• Frequency Rating: 60 Hz
• Full Load Amps: 14.6/7.3 A
• HP: 0.75
• Insulation Class: B
• Motor Design: Capacitor Start
• Motor Shaft Rotation: CCWPE
• Motor Thermal Protection: Auto
• Mounting Type: C-Face
• Overall Length: 11.67 Inch
• Phase: 1-Phase
• RPM: 3450
• Service Factor: 1.50
• Shaft Design: Keyed
• Shaft Diameter: 5/8 Inch
• Shaft Length: 2-1/16 Inch
• Standards Approvals: UL 1081 Approved, UL Recognized (E20522), CSA Certified (LR43341)
• Thrust Horsepower: 1.13
• Voltage Rating: 115/230 V
