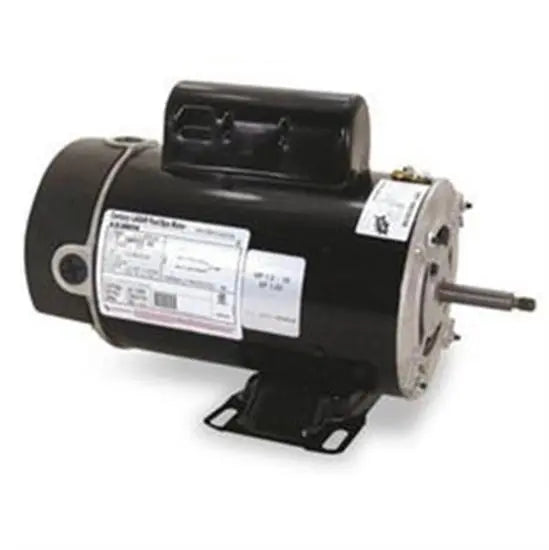

AO Smith 2 Horsepower 2 Speed Thru Bolt Pool Pump Motor features All copper windings, Automatic thermal protection, Capacitor start, Open drip proof design, Sealed ball bearings, "1081" Motor design and Maximum temperature 40 degrees Celsius ambient.
Features:
- Energy efficient
- 12 & 3 o'clock conduit entries
- Run capacitor mounted on motor shell
- 3/8-16 UNC-2A RH threaded shaft
Specifications:
- Ambient Temperature : 40 deg C
- Bearing Type : Ball
- Diameter : 5-5/8 Inch
- Duty Cycle : Continuous
- Enclosure Design : Open Drip proof
- Frame : 48Y
- Frequency Rating : 60 Hz
- Full Load Amps : 8.5/2.8 A
- HP : 2/0.25
- Insulation Class : B
- Motor Design : PSC
- Motor Shaft Rotation : CCWPE
- Motor Thermal Protection : Auto
- Mounting Type : Thru-Bolt, Rigid Base
- Number of Speed : 2-2-VT
- Overall Length : 13.33 Inch
- Phase : 1-Phase
- RPM : 3450/1725
- Service Factor : 1.00
- Shaft Design : Threaded
- Shaft Diameter : 1/2 Inch
- Shaft Height : 3-1/2 Inch
- Shaft Length : 2-5/16 Inch
- Standards Approvals : UL Approved, UL Recognized (E14663), CSA Certified (LR4642), Meets California Energy Commission Appliance Regulations 2008
- Thrust Horsepower : 2
- Voltage Rating : 230 V
