Product Description

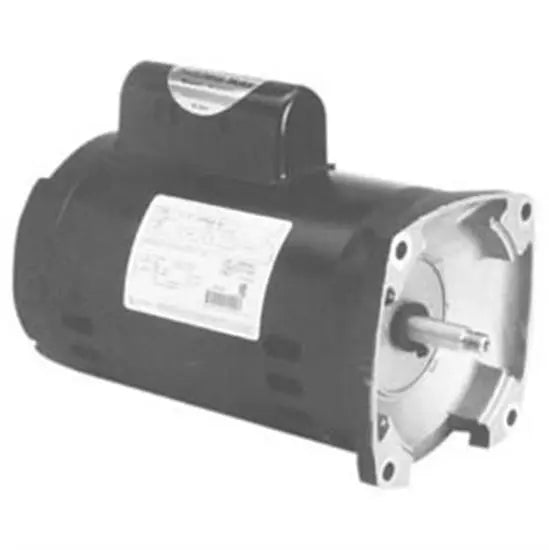

AO Smith 2 Horsepower 2 Speed Standard Pool Pump Motor - B985 features 2 Speed, High Service Factor, 40C Ambient, High Speed Switchless, Low Speed Microsmith and square Flange.

Features:

  • Low service factor
  • Energy efficient
  • 1/2-20 UNF-2A RH threaded shaft

Specifications:

  • Ambient Temperature: 50 deg C
  • Bearing Type: Ball
  • Diameter: 6-1/2 Inch
  • Duty Cycle: Continuous
  • Enclosure Design: Open Drip proof
  • Frame: 56Y
  • Frequency Rating: 60 Hz
  • Full Load Amps: 10.0/3.5 A
  • HP: 2
  • Insulation Class: B
  • Motor Design: Capacitor Start/Run on Low Speed, PSC on High Speed
  • Motor Shaft Rotation: CCWPE
  • Motor Thermal Protection: Auto
  • Mounting Type: C-Face
  • Number of Speed: 2-2-VT
  • Overall Length: 14.40 Inch
  • Phase: 1-Phase
  • RPM: 3450/1725
  • Service Factor: 1.10
  • Shaft Design: Threaded
  • Shaft Diameter: 5/8 Inch
  • Shaft Length: 1-7/8 Inch
  • Standards Approvals: UL 1081 Approved, CSA Certified, Meets California Energy Commission Appliance Regulations 2008
  • Thrust Horsepower: 2.2
  • Voltage Rating: 230 V
