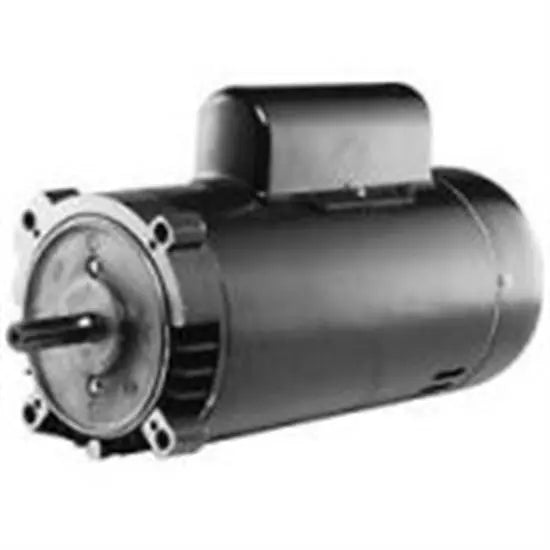

AO Smith 2 HP 230V 56C Replacement Motor - SK1202

Sold out
Original price
$389.99
Current price

$322.00

SKU SK1202

Product Description

AO Smith 2 Horsepower 230V 56C Replacement Motor features all copper windings, an auto protector, capacitor start, NEMA "56C" face mount, sealed ball bearings, a sealed switch design, 60 HZ, and a 303 stainless shaft (56J & 56C). This replacement motor is open drip proof, has a "1081" design, rotation (CCWPE), 50 degree C ambient, and a 304 Brg. shaft end. This AO Smith motor is not reversible.



Features:

  • Sealed switch design
  • High service factor
  • Energy efficient "Conservationist™" motor

Specifications:

  • Ambient Temperature :  50 deg C
  • Bearing Type :  Sealed Ball
  • Diameter :  6-1/2 Inch
  • Duty Cycle :  Continuous
  • Enclosure Design :  Open Drip proof
  • Frame :  56C
  • Frequency Rating :  60 Hz
  • Full Load Amps :  11.2 A
  • HP :  2
  • Insulation Class :  B
  • Motor Design :  Capacitor Start/Run
  • Motor Shaft Rotation :  CCWPE
  • Motor Thermal Protection :  Auto
  • Mounting Type :  C-Face
  • Number of Speed    :  1-Speed
  • Overall Length :  13.06 Inch
  • Phase :  1-Phase
  • RPM :  3450
  • Service Factor :  1.30
  • Shaft Design :  Keyed
  • Shaft Diameter :  5/8 Inch
  • Shaft Length :  2-1/16 Inch
  • Standards Approvals :  UL 1081 Approved, UL Recognized (E20522), CSA Certified (LR43341)
  • Thrust Horsepower :  2.6
  • Voltage Rating :  230 V
