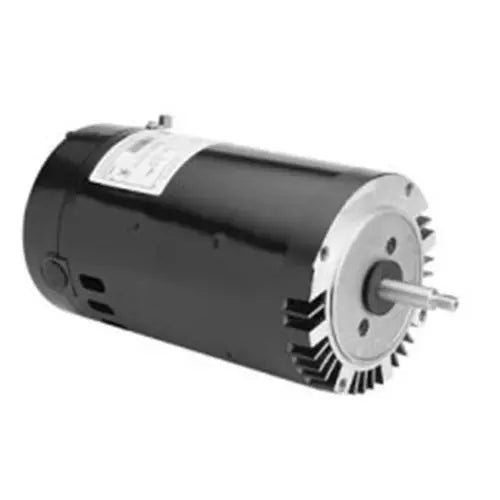

AO Smith 2 HP 208-230-460V 3 Phase 56J Replacement Motor - T3202

The H733 AO Smith motor is a commercial “C” Face replacement motor used with a variety of commercial pumps. The H733 is a threaded shaft, round flange, 3 phase 2HP motor.

Specifications:

• - Horsepower: 2HP
• - Service Factor: 1.20
• - 3 Phase Dripproof
• - RPM: 3450
• - Voltage: 200-230/460
• - Amps: 6.8-6.6/3.3
• - Frame: 56J
• - Shaft: Threaded
• - Flange: Round

Application:

• Commercial Pumps

Features:

• - Commercial Pump Motor
• - Three Phase
• - Double Sealed Ball Bearings
• - Class B Insulation

Manufacturers Part Number: MAGH733
Manufacturer: AO Smith
UPC:

1 Year manufacturers warranty
