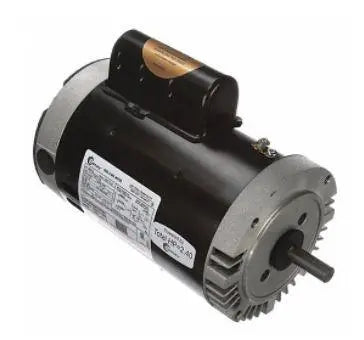

AO Smith 2 HP 230V 2 Speed Replacement Motor - B978

AO Smith 2 HP 230V 2 Speed Replacement Motor - B978

by AO Smith
SKU B978
Availability:
in stock, ready to be shipped
Save 16% Save 16%
$589.99
$589.99 - $589.99
$589.99
$497.70
$497.70 - $497.70
$497.70

Questions? Contact a Pool Professional Now!

Chat with us | Text us | Email us

Product Description

AO Smith 2 Horsepower 230V 2 Speed Replacement Motor - B978 features a permanent split capacitor, switchless, single phase, drip proof, round frame, 3600 RPM. This replacement motor by AO Smith also includes ball bearings, 40 degree C ambient, 60 Hz, class B insulation, CW non-reversible and has an energy efficient design.

Features:

  • Switchless
  • Energy efficient

Specifications:

  • Ambient Temperature: 40 deg C
  • Bearing Type: Ball
  • Diameter: 6-1/2 Inch
  • Duty Cycle: Continuous
  • Enclosure Design: Open Drip proof
  • Frame: 56C
  • Frequency Rating: 60 Hz
  • Full Load Amps: 10.6/3.2 A
  • HP: 2
  • Insulation Class: B
  • Motor Design: Capacitor Start/Run on Low Speed, PSC on High Speed
  • Motor Shaft Rotation: CCWPE
  • Motor Thermal Protection: Auto
  • Mounting Type: C-Face, No Base
  • Number of Speed: 2-2-VT
  • Overall Length: 13.04 Inch
  • Phase: 1-Phase
  • RPM: 3450/1725
  • Service Factor: 1.20
  • Shaft Design: Keyed
  • Shaft Diameter: 5/8 Inch
  • Shaft Length: 2-1/16 Inch
  • Standards Approvals: UL 1081 Approved, CSA Certified (LR4642), Meets California Energy Commission Appliance Regulations 2008
  • Thrust Horsepower: 2.4
  • Voltage Rating: 230 V
