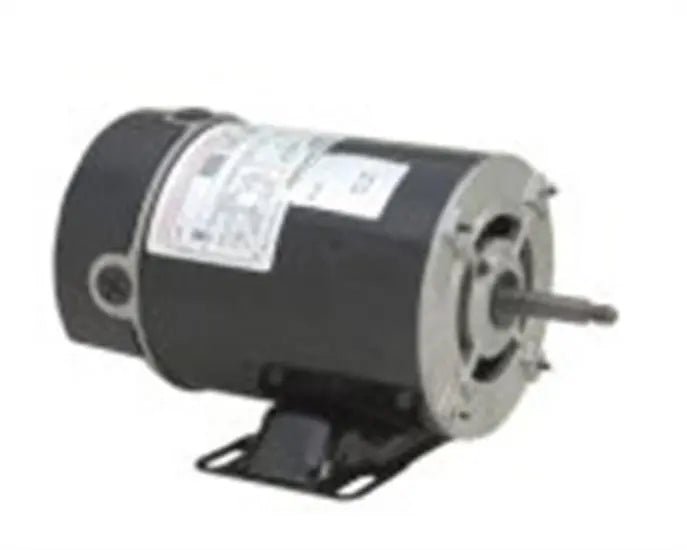

AO Smith 2HP 230V 2 Speed 48Y Replacement Motor - BN51

Save 18%
Original price
$309.99
Current price

$255.00

SKU BN51

Product Description

AO Smith 2 Horsepower 230V 2 Speed 48Y Replacement Motor has great features including split phase and capacitor start, single phase, drip proof, ball bearing, rigid base, and round frame.



Features:

  • 12 & 3 o'clock conduit entries
  • 48/56 Base mounting
  • 3/8-16 UNC-2A RH threaded shaft

Specifications:

  • Ambient Temperature :  40 deg C
  • Bearing Type :  Ball
  • Diameter :  5-5/8 Inch
  • Duty Cycle :  Continuous
  • Enclosure Design :  Open Drip proof
  • Frame :  48Y
  • Frequency Rating :  60 Hz
  • Full Load Amps :  10.5/2.6 A
  • HP :  2/0.25
  • Insulation Class :  B
  • Motor Design :  Capacitor Start
  • Motor Shaft Rotation :  CCWPE
  • Motor Thermal Protection :  Auto
  • Mounting Type :  Thru-Bolt, Rigid Base
  • Number of Speed    :  2-2-VT
  • Overall Length :  13.33 Inch
  • Phase :  1-Phase
  • RPM :  3450/1725
  • Service Factor :  1.00
  • Shaft Design :  Threaded
  • Shaft Diameter :  1/2 Inch
  • Shaft Height :  3-1/2 Inch
  • Shaft Length :  2-5/16 Inch
  • Standards Approvals :      UL 1081/1563 Approved, CSA Certified
  • Thrust Horsepower :  2
  • Voltage Rating :  230 V
