Product Description

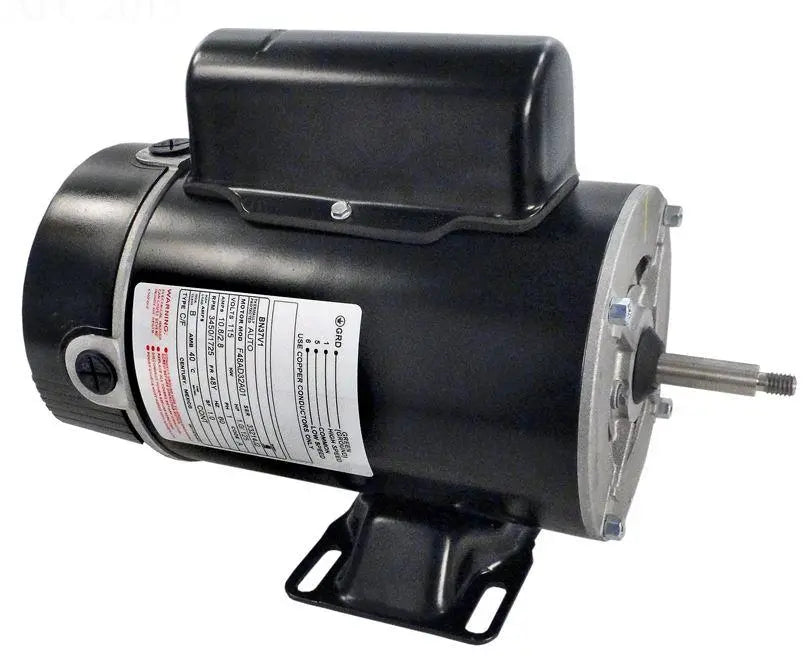

AO Smith 1 Horsepower Replacement 2 Speed Spa Motor 115V Thru Bolt - BN37V1 offers a high frequency of varied needs! Take home this two-speed, 1 HP motor with 115 V. It is built with 1.00 service factor that is sufficient to accomplish your various purposes. It has a compatible RPM speed that provides higher performance.

Features:

  • Energy efficient
  • 12 & 3 o'clock conduit entries
  • Four thru bolts on a 5.146 bolt circle
  • 48/56 Base mounting
  • Run capacitor mounted on motor shell

Specifications:

  • Ambient Temperature: 40 deg C
  • Bearing Type: Ball
  • Diameter: 5-5/8 Inch
  • Duty Cycle: Continuous
  • Enclosure Design: Open Drip proof
  • Frame: 48Y
  • Frequency Rating: 60 Hz
  • Full Load Amps: 10.8/2.8 A
  • HP: 1
  • Insulation Class: B
  • Motor Design: Capacitor Start on Low Speed, PSC on High Speed
  • Motor Shaft Rotation: CCWPE
  • Motor Thermal Protection: Auto
  • Mounting Type: Thru-Bolt, Rigid Base
  • Number of Speed: 2-Speed
  • Overall Length: 12.08 Inch
  • Phase: 1-Phase
  • RPM: 3450/1725
  • Service Factor: 1.00
  • Shaft Design: Threaded
  • Standards Approvals: UL 1081/1563 Approved, CSA Certified, Meets California Energy Commission Appliance Regulations 2008
  • Thrust Horsepower: 1
  • Voltage Rating: 115 V
