Product Description

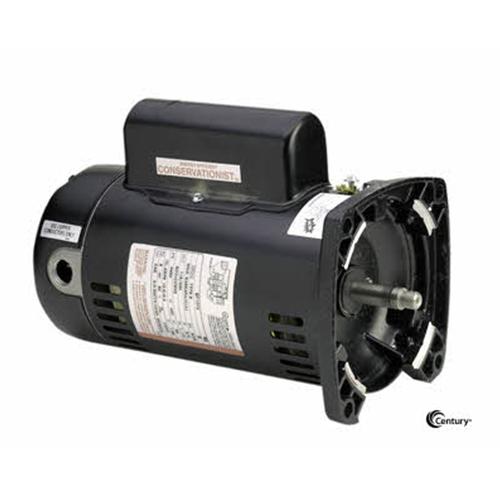

The AO Smith 1 1/2 Horsepower Full Rated 230V Energy Efficient 2-Speed Pump Motor SQS1152R is a two-speed, two-compartment square flange replacement pool pump motor.  This pool pump motor is used on many Sta-Rite, Red Jacket, and Sears Jet and Pool Pumps.  Meets California Energy Commission Appliance Regulations.  AO Smith is a leading supplier of electrical motors for residential, commercial and industrial applications, not to mention, in the swimming pool industry.

AO Smith was recently acquired by Century Electric Motors.  You can expect the same great quality motors from Century Electric.  Motors are now labeled as Century Electric formerly A.O. Smith.

Specifications:

  • Horsepower:  1.5 - .25 HP
  • RPM:  3450/1725
  • Voltage:  230 Volts
  • Amps (Hi-Lo):  10.0/8.0
  • Service Factor:  1.47
  • Total Horsepower:  2.21
  • Frame:  48Y
  • Approx. "AG":  13-9/16
  • Rotation:  CCW Pump End

Features:

  • All Copper Windings
  • Single Phase Auto Protector
  • Open Drip-proof
  • Class B Insulation
  • 50⁰C Ambient
  • 60 Hz
  • 303 Stainless Steel Threaded Shaft
  • Energy Efficient Capacitor Start Low Speed, PSC High Speed
  • UL1081
