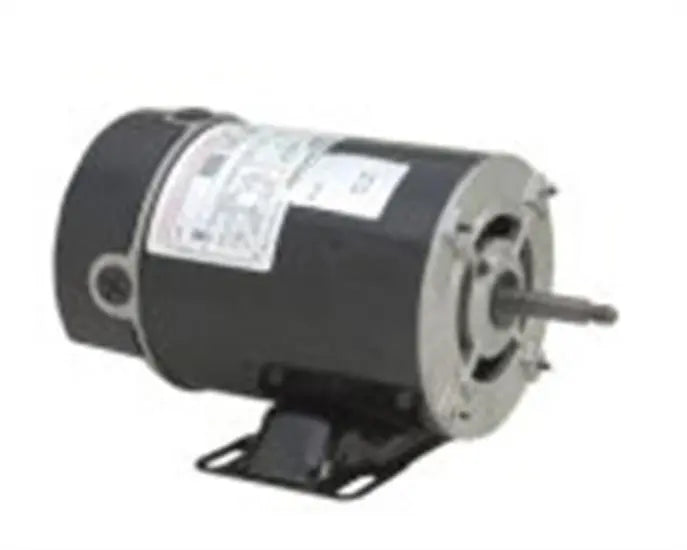

AO Smith 1/2 HP 115V Replacement Motor - BN23V1

Save 20%
Original price
$149.99
Current price

$120.00

SKU CBT2052

Product Description

AO Smith 1/2 Horsepower 115V Replacement Motor for the Astral spa and aboveground pool pumps. This motor made by AO Smith for Astral has a threaded shaft, Class B insulation and sealed ball bearings lubricated for life.



Features:

  • 12 & 3 o'clock conduit entries
  • Four thru bolts on a 5.146 bolt circle
  • 48/56 Base mounting
  • 3/8-16 UNC-2A RH threaded shaft

Specifications:

  • Ambient Temperature :  40 deg C
  • Bearing Type :  Ball
  • Diameter :  5-5/8 Inch
  • Duty Cycle :  Continuous
  • Enclosure Design :  Open Drip proof
  • Frame :  48Y
  • Frequency Rating :  60 Hz
  • Full Load Amps :  7 A
  • HP :  .5
  • Insulation Class :  B
  • Motor Design :  Split-Phase
  • Motor Shaft Rotation :  CCWPE
  • Motor Thermal Protection :  Auto
  • Mounting Type :  Thru-Bolt, Rigid Base
  • Number of Speed    :  1-Speed
  • Overall Length :  10.84 Inch
  • Phase :  1-Phase
  • RPM :  3450
  • Service Factor :  1.00
  • Shaft Design :  Threaded
  • Shaft Diameter :  1/2 Inch
  • Shaft Height :  3-1/2 Inch
  • Shaft Length :  1-13/16 Inch
  • Standards Approvals :      UL 1081/1563/1795 Approved, CSA Certified
  • Thrust Horsepower :  .5
  • Voltage Rating :  115 V
