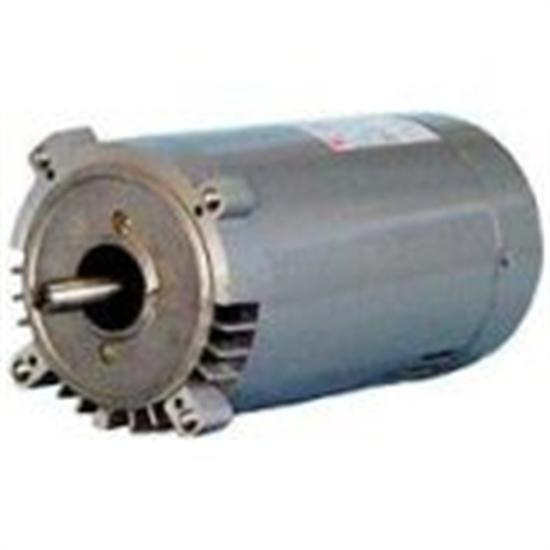

The AO Smith 1/2 HP 115/230V 56C Replacement Motor features all copper windings, an auto protector, capacitor start, NEMA "56C" face mount, sealed ball bearings, a sealed switch design, 60 HZ, and a 303 stainless shaft (56J & 56C). This replacement motor is open drip proof, has a "1081" design, rotation (CCWPE), 50 degree C ambient, and a 304 Brg. shaft end. This AO Smith motor is not reversible. It is important to keep in mind that the total output (HP x service factor) of a replacement motor must equal or exceed the motor being replaced.
A.O. Smith was recently acquired by Century Electric Motors. You can expect the same great quality motors from Century Electric. Motors are now labeled as Century Electric formerly A.O. Smith.
Application:
Features:
- Copper windings
- Auto protector
- Capacitor start
- NEMA "56C" face mount
- Sealed ball bearings
- Sealed switch design
- 60 HZ
- 303 stainless shaft (56J & 56C)
- Open drip proof
- "1081" design
- Rotation (CCWPE)
- 50 degree C ambient
- 304 Brg. shaft end
- Not reversible
