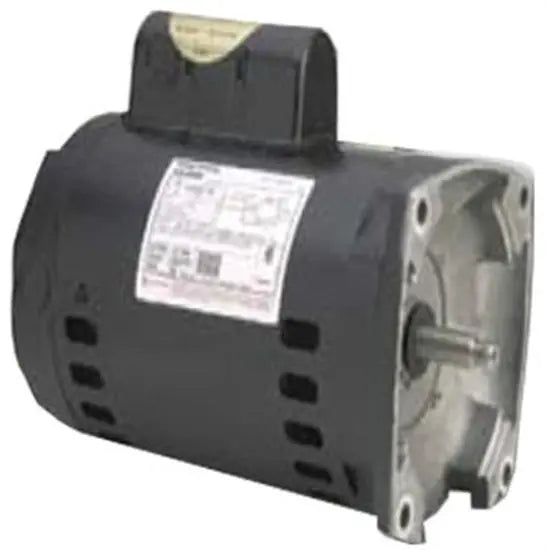

A.O Smith Motor Flanged 2 HP 2 Speed 23V - SQS1202R

A.O Smith Motor Flanged 2 Horsepower 2 Speed 23V is a square mounting face for the pump attachment, with 4 non-threaded bolt holes to attach the pump. Motor has a sealed ball bearings.

Features:

• High service factor
• Energy efficient
• All copper windings
• 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH threaded shaft

Specifications:

• Ambient Temperature :  50 deg C
• Bearing Type :  Ball
• Diameter :  5-5/8 Inch
• Duty Cycle :  Continuous
• Enclosure Design :  Open Drip proof
• Frame :  48Y
• Frequency Rating :  60 Hz
• Full Load Amps :  11.3/3.3 A
• HP :      2/0.33
• Insulation Class :  B
• Motor Design :  Capacitor Start on Low Speed, PSC on High Speed
• Motor Shaft Rotation :  CCWPE
• Motor Thermal Protection :  Auto
• Mounting Type :  C-Face
• Number of Speed    :  2-Speed
• Overall Length :  13.81 Inch
• Phase :  1-Phase
• RPM :  3450/1725
• Service Factor :  1.30
• Shaft Design :  Threaded
• Shaft Diameter :  5/8 Inch
• Standards Approvals :      UL 1081 Approved, UL Recognized (E46412), CSA Certified (LR43341), Meets California Energy Commission Appliance Regulations 2008
• Thrust Horsepower :  2.6
• Voltage Rating :  230 V
