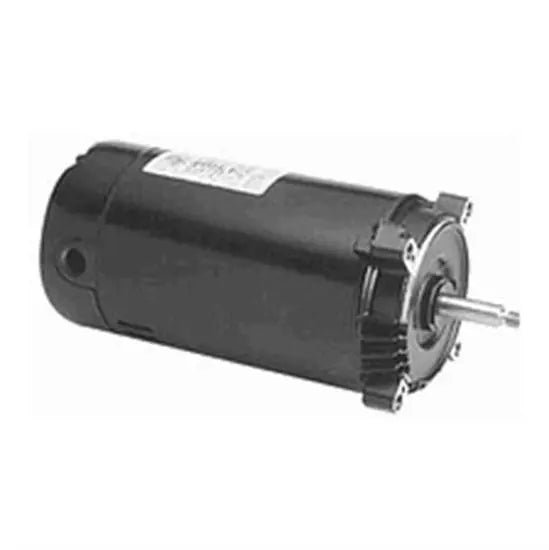

A.O Smith Motor 1.5 HP Flanged Shaft 2 Speed 230V - STS1152R

Save 13%
Original price
$384.99
Current price

$334.00

SKU STS1152R

Product Description

A.O Smith Motor 1.5 HP Flanged Shaft 2 Speed 230V - STS1152R has sealed switch design which helps to prevent water infiltration. It includes moisture/heat-resistant bearing lubricant. A.O Smith Motor 1.5HP Flanged Shaft is carefully engineered to meet the rugged demands of pool duty.

Features:

  • Sealed switch design
  • Energy efficient
  • All copper windings
  • 7/16-20 UNF-2A RH threaded shaft

Specifications:

  • Ambient Temperature: 50 deg C
  • Bearing Type: Sealed Ball
  • Diameter: 6-1/2 Inch
  • Duty Cycle: Continuous
  • Enclosure Design: Open Drip proof
  • Frame: 56J
  • Frequency Rating: 60 Hz
  • Full Load Amps: 9.0/3.3 A
  • HP: 1.5
  • Insulation Class: B
  • Motor Design: Capacitor Start/Run
  • Motor Shaft Rotation: CCWPE
  • Motor Thermal Protection: Auto
  • Mounting Type: C-Face
  • Number of Speed: 2-Speed
  • Overall Length: 13.06 Inch
  • Phase: 1-Phase
  • RPM: 3450/1725
  • Service Factor: 1.30
  • Shaft Design: Threaded
  • Shaft Diameter: 5/8 Inch
  • Shaft Length: 2-9/16 Inch
  • Standards Approvals: UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341), Meets California Energy Commission Appliance Regulations 2008
  • Thrust Horsepower: 1.95
  • Voltage Rating: 230 V
