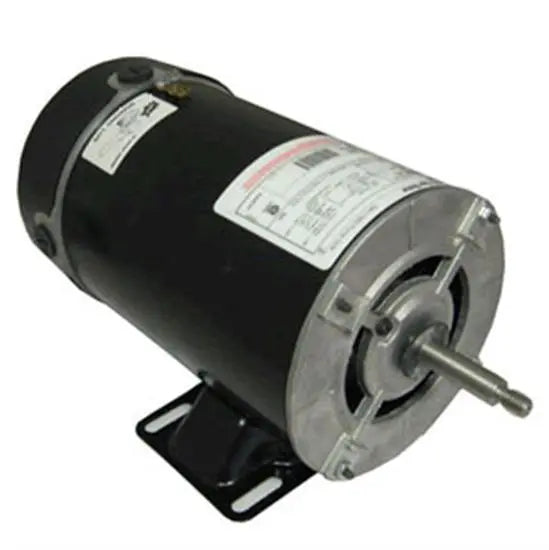

A.O Smith Motor 1 1/2 HP Thru Bolt 115-230V - BN35V1

A.O Smith Motor 1 1/2 HP Thru Bolt 115-230V - BN35V1

by AO Smith
SKU BN35SS
Availability:
in stock, ready to be shipped
Save 26% Save 26%
$199.99
$199.99 - $199.99
$199.99
$147.60
$147.60 - $147.60
$147.60

Questions? Contact a Pool Professional Now!

Chat with us | Text us | Email us

Product Description

A.O Smith Motor 1 1/2 HP Thru Bolt 115-230V - BN35V1 is the replacement part of Waterway Supreme Pump, Waterway Center Discharge Pump, Sta-Rite JW and JWA5 Series, Sta-Rite ABG Series, Poolco Twister XLV Pump.

Features:

  • 12 & 3 o'clock conduit entries
  • Four thru bolts on a 5.146 bolt circle
  • 48/56 Base mounting
  • 3/8-16 UNC-2A threaded shaft

Specifications:

  • Ambient Temperature: 40 deg C
  • Bearing Type: Ball
  • Diameter: 5-5/8 Inch
  • Duty Cycle: Continuous
  • Enclosure Design: Open Drip proof
  • Frame: 48Y
  • Frequency Rating: 60 Hz
  • Full Load Amps: 16/8 A
  • HP: 1.5
  • Insulation Class: B
  • Motor Design: Capacitor Start
  • Motor Shaft Rotation: CCWPE
  • Motor Thermal Protection: Auto
  • Mounting Type: Thru-Bolt, Rigid Base
  • Number of Speed: 1-Speed
  • Overall Length: 12.08 Inch
  • Phase: 1-Phase
  • RPM: 3450
  • Service Factor: 1.00
  • Shaft Design: Threaded
  • Shaft Diameter: 1/2 Inch
  • Shaft Height: 3-1/2 Inch
  • Shaft Length: 1-13/16 Inch
  • Standards Approvals: UL 1081/1563/1795 Approved, CSA Certified
  • Thrust Horsepower: 1.5
  • Voltage Rating: 115/230 V
