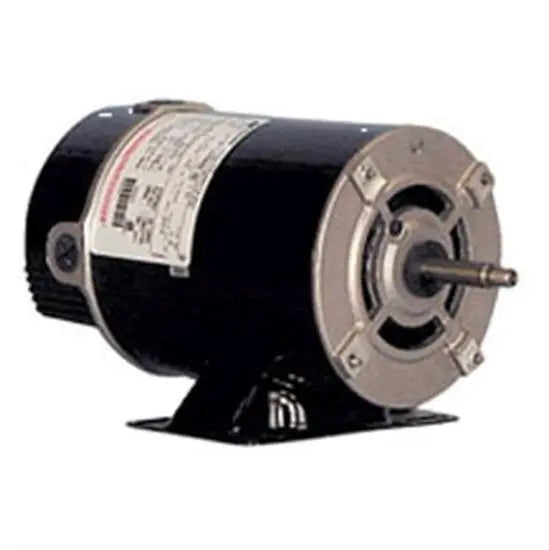

A.O Smith 3/4 HP Thread Shaft Motor Magnetek 115V - BN24V1

Product Description

A.O Smith 3/4 Horsepower Thread Shaft Motor Magnetek 115V - BN24V1 is the replacement part of K-D Pools Model K Pump, K-D Pools LR6 Pump, Waterway Supreme Pump, Waterway Center Discharge Pump, Sta-Rite JW and JWA5 Series, Sta-Rite ABG Series, Poolco Twister XLV Pump.

Features:

• 12 & 3 o'clock conduit entries
• Four thru bolts on a 5.146 bolt circle
• 48/56 Base mounting
• 3/8-16 UNC-2A RH threaded shaft

Specifications:

• Ambient Temperature: 50 deg C
• Bearing Type: Ball
• Diameter: 5-5/8 Inch
• Duty Cycle: Continuous
• Enclosure Design: Open Drip proof
• Finish Color: Black
• Frame: 48Y
• Frequency Rating: 60 Hz
• Full Load Amps: 9.4 A
• HP: 0.75
• Insulation Class: B
• Motor Design: Split-Phase
• Motor Shaft Rotation: CCWPE
• Motor Thermal Protection: Auto
• Mounting Type: Thru-Bolt, Rigid Base
• Number of Speed: 1-Speed
• Overall Length: 11.21 Inch
• Phase: 1-Phase
• RPM: 3450
• Service Factor: 1.00
• Shaft Design: Threaded
• Shaft Diameter: 1/2 Inch
• Shaft Height: 3-1/2 Inch
• Shaft Length: 2-9/16 Inch
• Shaft Material: Stainless Steel
• Standards Approvals: UL 1081/1563/1795 Approved, CSA Certified (LR4642)
• Thrust Horsepower: 0.75
• Voltage Rating: 115 V
