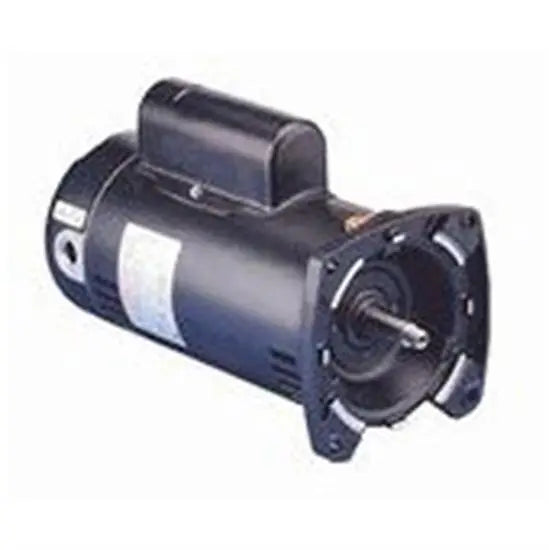

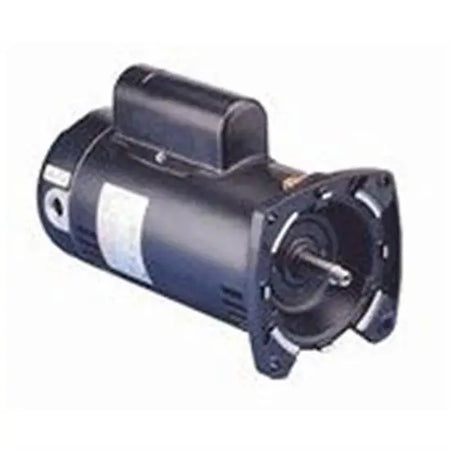

A.O Smith Square Flange 2 Speed Up Rated Pool and Spa Pump Motor - UQS1202R

A.O Smith Square Flange 2 Speed Up Rated Pool and Spa Pump Motor - UQS1202R

by AO Smith
SKU UQS1202R
Availability:
in stock, ready to be shipped
$467.10 - $467.10
$467.10
$467.10 - $467.10
$467.10

Questions? Contact a Pool Professional Now!

Chat with us | Text us | Email us

Product Description

A.O Smith Square Flange 2 Speed Up Rated Pool and Spa Pump Motor - UQS1202R is square flange replacement in ground pool pump motor. It is compatible PacFab Challenger, Whisperflo, Pentair, Sta-rite Dura Glas, Dyna Glas, Max E Glas. It has a square type flange for mounting the pump.

Features:

  • Low service factor
  • Energy efficient
  • 1/2-20 UNF-2A RH threaded shaft

Specifications:

  • Ambient Temperature: 50 deg C
  • Bearing Type: Ball
  • Diameter: 6-1/2 Inch
  • Duty Cycle: Continuous
  • Efficiency Group: High
  • Enclosure Design: Open Dripproof
  • Finish Color: Black
  • Flange Material: Aluminum
  • Flange Type: Square
  • Frame: 56Y
  • Frequency Rating: 60 Hz
  • Full Load Amps: 10.0/3.5 A
  • HP: 2/0.33
  • Insulation Class: B
  • Motor Design: Capacitor Start/Run on Low Speed, PSC on High Speed
  • Motor Shaft Rotation: CCWPE
  • Motor Thermal Protection: Auto
  • Mounting Type: C-Face
  • Number of Speed: 2-2-VT
  • Overall Length: 14.40 Inch
  • Phase: 1-Phase
  • RPM: 3450/1725
  • Service Factor: 1.10
  • Shaft Design: Threaded
  • Shaft Diameter: 5/8 Inch
  • Shaft Length: 1-7/8 Inch
  • Shaft Material: 303 Stainless Steel
  • Standards Approvals: UL 1081 Approved, CSA Certified, Meets California Energy Commission Appliance Regulations 2008
  • Thrust Horsepower: 2.2
  • Type: Up-Rated, CXPM
  • Voltage Rating: 230 V
