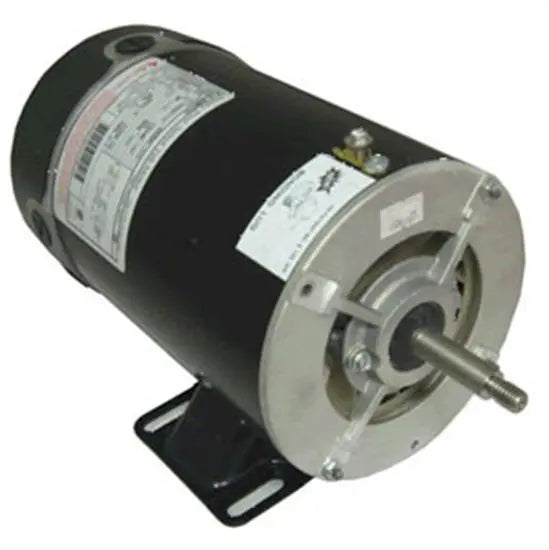

A.O Smith 1 HP Thread Shaft Motor Magnetek 115V - BN25V1

Save 18%
Original price
$169.99
Current price

$139.00

SKU BN25V1

Product Description

A.O Smith 1 Horsepower Thread Shaft Motor Magnetek 115V - BN25V1 is the replacement part of Waterway Supreme Pump, Waterway Center Discharge Pump, Sta-Rite JW and JWA5 Series, Sta-Rite ABG Series, Poolco Twister XLV Pump.

Features:

  • 12 & 3 o'clock conduit entries
  • Four thru bolts on a 5.146 bolt circle
  • 48/56 Base mounting
  • 3/8-16 UNC-2A threaded shaft

Specifications:

  • Ambient Temperature: 40 deg C
  • Bearing Type: Ball
  • Diameter: 5-5/8 Inch
  • Duty Cycle: Continuous
  • Enclosure Design: Open Drip proof
  • Finish Color: Black
  • Frame: 48Y
  • Frequency Rating: 60 Hz
  • Full Load Amps: 11.8 A
  • HP: 1
  • Insulation Class: B
  • Motor Design: Split-Phase
  • Motor Shaft Rotation: CCWPE
  • Motor Thermal Protection: Auto
  • Mounting Type: Thru-Bolt, Rigid Base
  • Number of Speed: 1-Speed
  • Overall Length: 11.46 Inch
  • Phase: 1-Phase
  • RPM: 3450
  • Service Factor: 1.00
  • Shaft Design: Threaded
  • Shaft Diameter: 1/2 Inch
  • Shaft Height: 3-1/2 Inch
  • Shaft Length: 1-13/16 Inch
  • Shaft Material: Stainless Steel
  • Standards Approvals: UL 1081/1563/1795 Approved, CSA Certified
  • Thrust Horsepower: 1
  • Voltage Rating: 115 V
