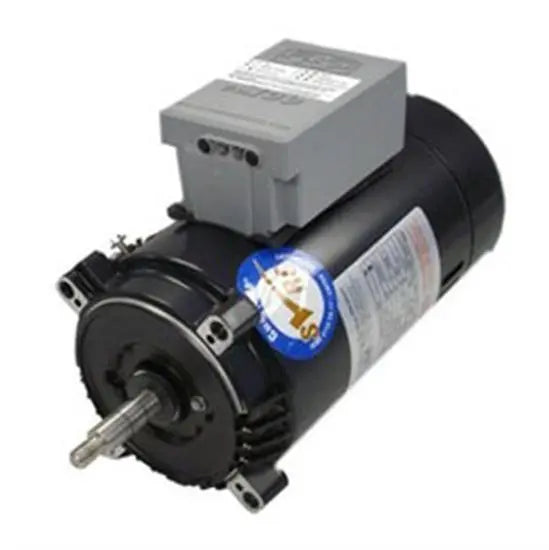

A.O Smith 1 HP C Face Emod Motor 56J 1.5 SF - STG1102A

Sold out
Original price
$289.99
Current price

$236.00

SKU STG1102

Product Description

A.O Smith 1 HP C Face Emod Motor 56J 1.5 SF is safety vacuum release system pool motor.

Features:

  • Auto-reset
  • Auto-calibration
  • Economical
  • Easy to install
  • Nerve center (lighting sequence)
  • Run/restart/rest/bypass mode
  • Compatible with all flow rates
  • Improves pool safety
  • Tamper-resistant housing

Specifications:

  • Ambient Temperature :  50 deg C
  • Bearing Type :  Ball
  • Diameter :  6-1/2 Inch
  • Duty Cycle :  Continuous
  • Enclosure Design :  Open Drip proof
  • Frame :  56J
  • Frequency Rating :  60 Hz
  • Full Load Amps :  18.6/9.3 A
  • HP :  1
  • Insulation Class :  B
  • Motor Design :  Capacitor Start
  • Motor Shaft Rotation :  CCWPE
  • Motor Thermal Protection :  Auto
  • Mounting Type    C-Face
  • Overall Length :  12.13 Inch
  • Phase :  1-Phase
  • RPM :  3450
  • Service Factor :  1.50
  • Shaft Design :  Threaded
  • Shaft Diameter :  5/8 Inch
  • Shaft Length :  2-9/16 Inch
  • Standards Approvals :      UL Approved, CSA Certified, ASME A112.19.17 SVRS
  • Thrust Horsepower :  1.5
  • Voltage Rating :  115/230 V
