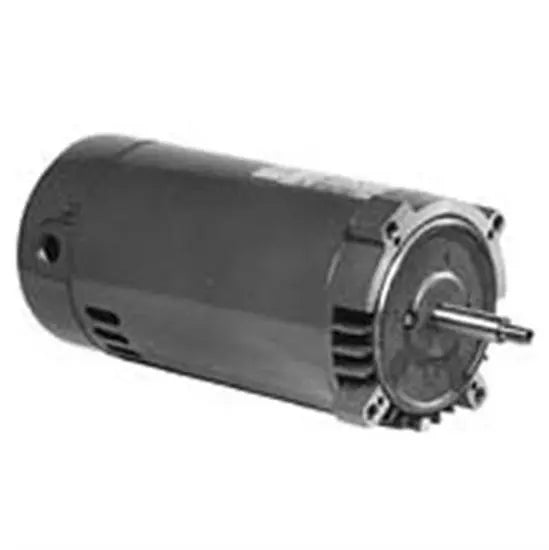

A.O Smith 1 1/2 Horsepower Replacement Motor Fits Wet Institute Pump features all copper windings, an auto protector, capacitor start, NEMA 56C face mount, sealed ball bearings, a sealed switch design, 60 HZ, and a 303 stainless shaft.
Features:
- Switchless
- Energy efficient
- Aluminum NEMA "C" brackets
Specifications:
- Ambient Temperature: 50 deg C
- Bearing Type: Ball
- Diameter: 6-1/2 Inch
- Duty Cycle: Continuous
- Enclosure Design: Open Drip proof
- Frame: 56C
- Frequency Rating: 60 Hz
- Full Load Amps: 8.7-7.8/15.6 A
- HP: 1.5
- Insulation Class: B
- Motor Design: PSC
- Motor Shaft Rotation: CCWPE
- Motor Thermal Protection: Auto
- Mounting Type: C-Face, No Base
- Number of Speed: 1-Speed
- Overall Length: 13.19 Inch
- Phase: 1-Phase
- RPM: 3450
- Service Factor: 1.30
- Shaft Design: Keyed
- Shaft Diameter: 5/8 Inch
- Shaft Length: 2-1/16 Inch
- Standards Approvals: UL 1081 Approved, CSA Certified
- Thrust Horsepower: 1.95
- Voltage Rating: 115/208-230 V
