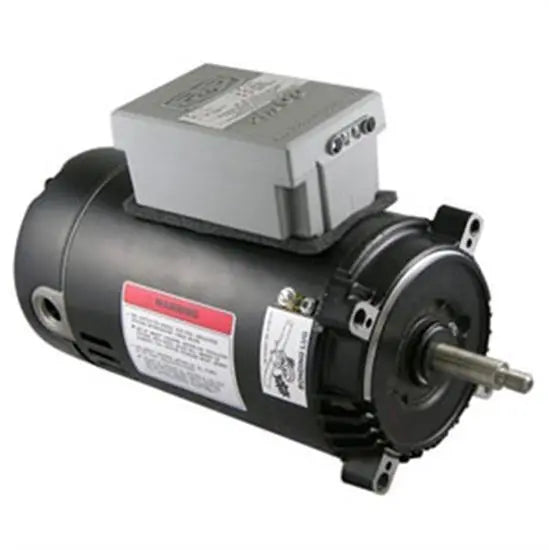

A.O Smith 1 1/2 HP Emod Motor C Face 1 SF - USTG1152A

Sold out
Original price
$259.99
Current price

$217.00

SKU USTG1152

Product Description

A.O Smith 1 1/2 Horsepower Emod Motor C Face 1 SF - USTG1152A is replacement part for swimming pool pumps has a threaded shaft. The E-Mod motor shuts off the motor/pump if operating conditions fall outside of normal operating parameters. It has an electronic load sensing module that automatically calibrates to the pool system and constantly monitors input power during operation.

Features:

  • Auto-reset
  • Auto-calibration
  • Economical
  • Easy to install
  • Nerve center (lighting sequence)
  • Run/restart/rest/bypass mode
  • Compatible with all flow rates
  • Improves pool safety
  • Tamper-resistant housing

Specifications:

  • Ambient Temperature: 50 deg C
  • Bearing Type: Ball
  • Diameter: 6-1/2 Inch
  • Duty Cycle: Continuous
  • Enclosure Design: Open Drip proof
  • Frame: 56J
  • Frequency Rating: 60 Hz
  • Full Load Amps: 18.6/9.3 A
  • HP: 1.5
  • Insulation Class: B
  • Motor Design: Capacitor Start
  • Motor Shaft Rotation: CCWPE
  • Motor Thermal Protection: Auto
  • Mounting Type: C-Face
  • Number of Speed: 1-Speed
  • Overall Length: 12.13 Inch
  • Phase: 1-Phase
  • RPM: 3450
  • Service Factor: 1.00
  • Shaft Design: Threaded
  • Shaft Diameter: 5/8 Inch
  • Shaft Length: 2-9/16 Inch
  • Shaft Material: Stainless Steel
  • Standards Approvals: UL Approved, CSA Certified, ASME A112.19.17 SVRS
  • Thrust Horsepower: 1.5
  • Voltage Rating: 115/230 V
