A.O Smith 1 1/2HP Emod Motor 56J C Face - 1.3 SF-Aqua Supercenter Outlet - Discount Swimming Pool Supplies

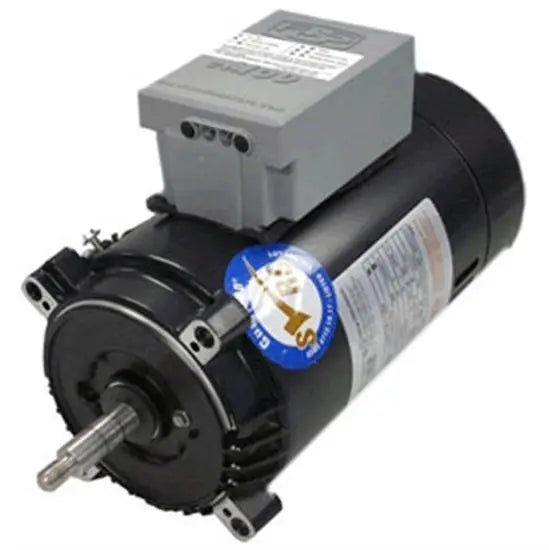

A.O Smith 1 1/2 HP Emod Motor 56J C Face 1.3 SF - BG129A

by AO Smith
SKU BG129
Availability:
in stock, ready to be shipped
Save 22% Save 22%
$379.99
$379.99 - $379.99
$379.99
$295.20
$295.20 - $295.20
$295.20

Questions? Contact a Pool Professional Now!

Chat with us | Text us | Email us

Product Description

A.O Smith 1 1/2 Horsepower Emod Motor 56J C Face 1.3 SF - BG129A is standard for suction lift applications.

Features:

  • Easy to install
  • Auto-reset
  • Auto-calibration
  • Economical
  • Tamper-resistant housing
  • Compatible with all flow rates

Specifications:

  • Ambient Temperature: 50 deg C
  • Bearing Type: Ball
  • Diameter: 6-1/2 Inch
  • Duty Cycle: Continuous
  • Enclosure Design: Open Drip proof
  • Frame: 56J
  • Frequency Rating: 60 Hz
  • Full Load Amps: 9.2/18.4 A
  • HP: 1.5
  • Insulation Class: B
  • Motor Design: PSC
  • Motor Shaft Rotation: CCWPE
  • Motor Thermal Protection: Auto
  • Mounting Type: C-Face
  • Number of Speed: 1-Speed
  • Overall Length: 11.00 Inch
  • Phase: 1-Phase
  • RPM: 3450
  • Service Factor: 1.30
  • Shaft Design: Threaded
  • Shaft Diameter: 5/8 Inch
  • Shaft Length: 2-9/16 Inch
  • Shaft Material: Stainless Steel
  • Standards Approvals: UL Approved, UL Recognized (E14663), CSA Certified (LR4642)
  • Thrust Horsepower: 1.95
  • Voltage Rating: 115/230 V
