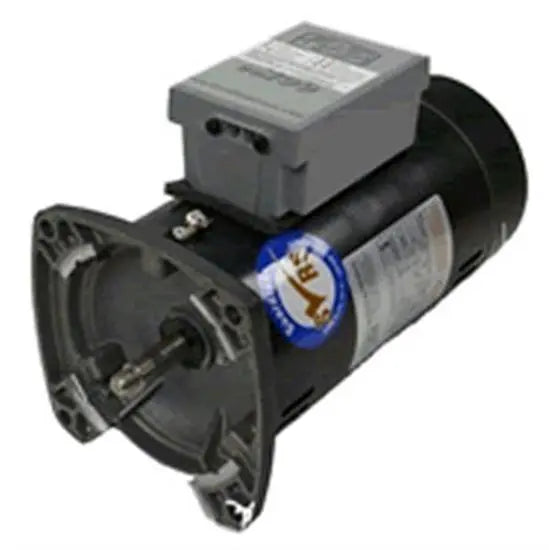

A.O Smith 1 1/2 HP Emod Motor 48Y Square Face - USQG1152A

Save 16%
Original price
$279.99
Current price

$235.00

SKU USQG1152

Product Description

A.O Smith 1 1/2 Horsepower Emod Motor 48Y Square Face is an electrical type SVRS that means it releases the entrapment victim by sensing the entrapment condition and shutting off the motor. It has an electronic load sensing module that automatically calibrates to the pool system and constantly monitors input power during operation.

Features:

  • Auto-reset
  • Auto-calibration
  • Economical
  • Easy to install
  • Nerve center (lighting sequence)
  • Run/restart/rest/bypass mode
  • Compatible with all flow rates
  • Improves pool safety
  • Tamper-resistant housing

Specifications:

  • Ambient Temperature :  50 deg C
  • Bearing Type :  Ball
  • Diameter :  5-5/8 Inch
  • Duty Cycle :  Continuous
  • Enclosure Design :  Open Drip proof
  • Frame :  48Y
  • Frequency Rating :  60 Hz
  • Full Load Amps :  19.2/9.6 A
  • HP :  1.5
  • Insulation Class :  B
  • Motor Design :  Capacitor Start
  • Motor Shaft Rotation :  CCWPE
  • Motor Thermal Protection :  Auto
  • Mounting Type :  C-Face
  • Overall Length :  13.13 Inch
  • Phase :  1-Phase
  • RPM :  3450
  • Service Factor :  1.10
  • Shaft Design :  Threaded
  • Shaft Diameter :  5/8 Inch
  • Shaft Length :  1/2 Inch
  • Standards Approvals :      UL Approved, CSA Certified, ASME A112.19.17 SVRS
  • Thrust Horsepower :  1.65
  • Voltage Rating :  115/230 V
