Description

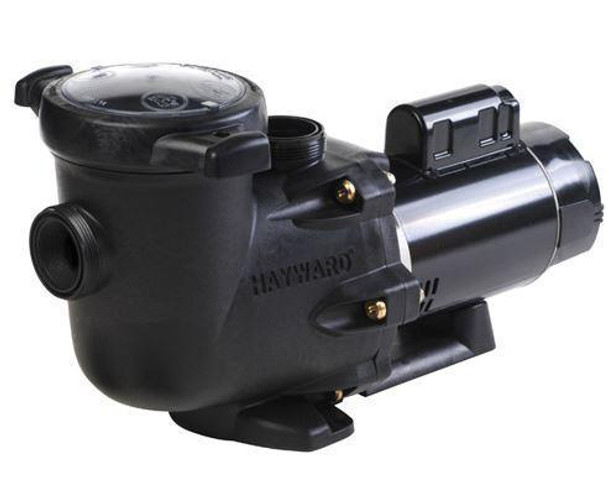

Hayward TriStar 3.0 Horsepower Energy Efficient Full Rated Single Speed Pool Pump SP3230EE features heavy-duty, high-performance pump technology. The advanced fluid dynamic design optimizes the three essential pump elements to deliver superior flow and energy efficiency creating a new benchmark in residential pool pumps. It's the first pump to feature a Tri-Lock cam and ramp strainer cover with a super sized, smooth, no-rib basket. This extra large leaf holding capacity extends the time between cleanings, giving you more time to relax and enjoy your pool. TriStar outperforms the competition when it comes to flow, efficiency and value. Easy to service, maintain, and the wide range of TriStar pumps are the perfect fit for a variety of pump installations.
Applications :
- In-ground pools of all types and sizes (including in-floor cleaning systems, solar heating systems, water features)
- In-ground spas or in-ground pool/spa combinations
- Fountains
Features :
- Superior hydraulic efficiency allows the pump to deliver the performance of larger, more expensive pumps
- Tri-Lock design makes strainer cover removal easy. No tools required, no loose parts, and no clamps
- Super-sized basket has extra leaf-holding capacity and extends time between cleanings. Rigid construction assures free flowing operation for heavy debris loads. Smooth inside surface insures easy debris removal
- Lexan see-thru strainer cover lets you see when the basket needs cleaning. Test feature allows line pressure test to 50 PSI MAXIMUM
- Balanced, Noryl high-head impeller provides high-volume output to accommodate even the most demanding installations, including pool/spa combinations and in-floor cleaning systems
- All components molded of corrosion-proof glass-filled polypropylene for extra durability and long life
- Quick and easy installation and servicing with 2 Inch x 2.5 Inch union connections; adapts to larger plumbing allowing less frequent run times per day, saving energy and money
- Mounting base provides stable, stress-free support
Product Specifications :
| Manufacturer | Hayward |
| Brand | TriStar® |
| Item | Pool Pump |
| Type | Energy Efficient |
| Voltage Rating | 208-230 V |
| Amperage Rating | 20 A |
| Service Factor | 1.20 |
| HP | 3 |
| Thrust Horsepower | 3.60 |
| Motor Speed | 1-Speed |
| Motor Rating | Full-Rated |
| Maximum Working Pressure | 50 psi |
| Connection Size | 2 Inch x 2-1/2 Inch |
| GPM of Water at 20F to fHead | 190 |
| GPM of Water at 30F to fHead | 190 |
| GPM of Water at 40F to fHead | 186 |
| GPM of Water at 50F to fHead | 174 |
| Dimension A | 17-1/8 Inch |
