Astral 71" Commercial Sand Filter

by Astral

$7,715.00

SKU AST06633

Product Description

»» Description:

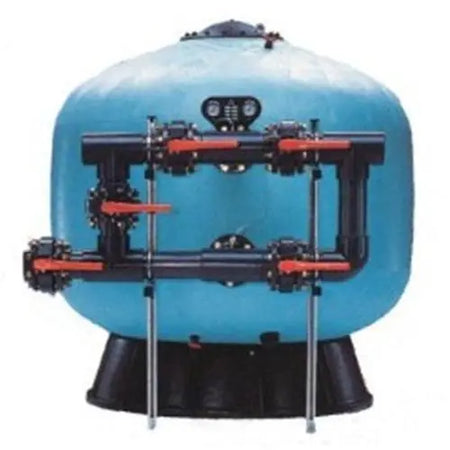

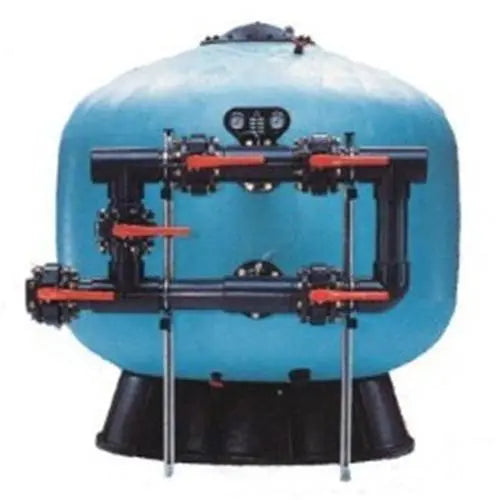

Astral 71" Commercial Sand Filter

The 06633 Astral 71” Commercial Sand Filter features the most advanced technology offered for commercial pool installations. The 71” filter tank is made of a 100% non-corrosive fiberglass and polyester resin which provide the maximum working pressure of 50 PSI with a test pressure of 75 PSI. This 71” filter is fitted with collector body laterals and a diffuser made of PVC. The tank of this filter is lightweight and easily handled by a standard forklift.



Specifications:

Filter Diameter: 71”

Filtration Area: 27.34 Sq Ft

Max Flow Rate: 556 GPM

Volume: 898 gallons

Connections: 6”

Sand Required: 6,850 lbs

Gravel Required: 1,650 lbs

Empty Weight: 786 lbs

»» Application:

Commercial Pool Installations

»» Features:

Increased Flow Capacity

Advanced Filter Design

Valve Sold Separately

NSF Listed

Large Media Drain Port

Dual Pressure Gauge

16" Manhole

Manual Air and Water Purge
